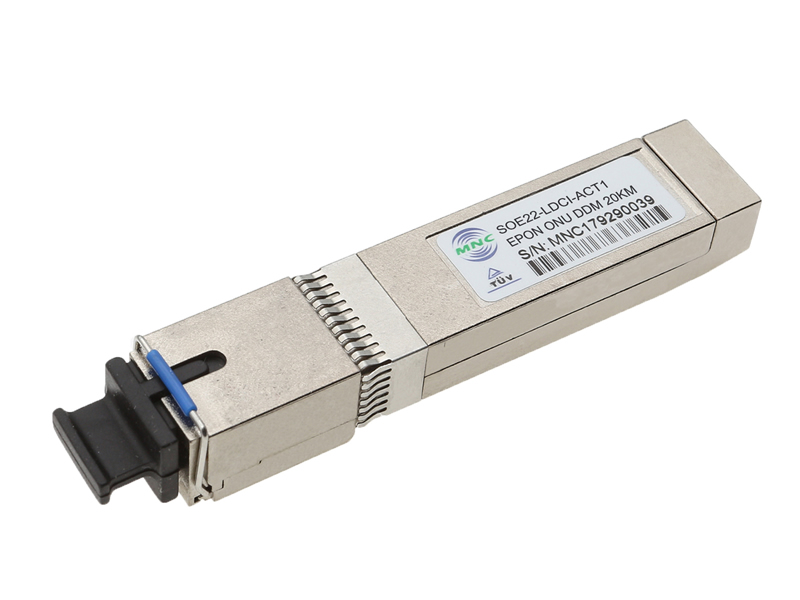

Single Fiber EPON ONU Transceiver
1310nm burst-mode 1.25 Gb/s transmitter with FP laser
1490nm continuous-mode 1.25Gb/s PIN-TIA receiver
Compliant with IEEE802.3 ah™ - 2004
Compliant with IEC60825 Class I
Compliant with SFF-8472 v11.0
Digital diagnostic monitoring interface (DDMI) with internal calibration
Small Form-Factor Hot Pluggable (SFP) Metallic Package with SC/UPC receptacle optical interface
Burst On/Off time is less than 16 bits
+3.3V separated power supply
LVTTL interface logic level for AC or DC coupled data input
CML interface logic level for AC coupled data output
LVTTL for burst signal input
LVTTL for receiver loss of signal detect indication
Compliant with RoHS-6
Operating temperature range: 0℃~+70℃
