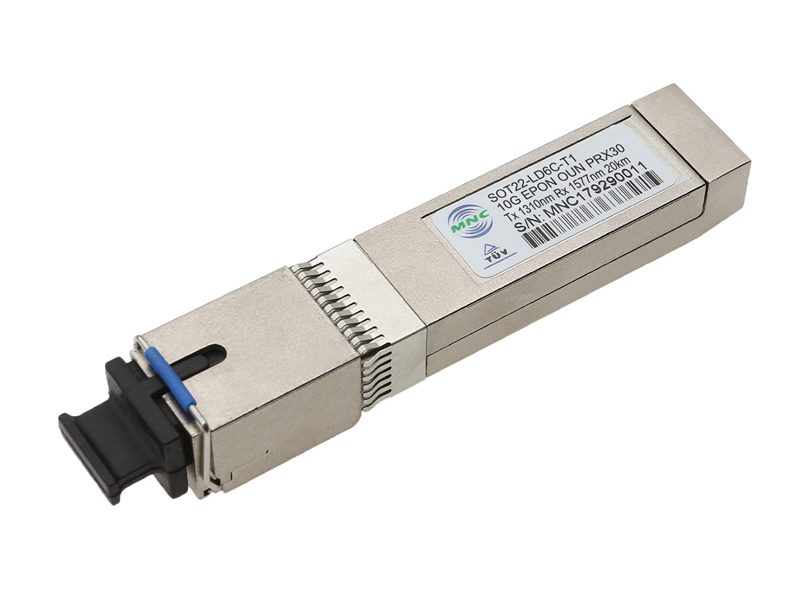

SFP+ Asymmetrical 10G EPON ONU SC Receptacle

Inquiry

Download

Describe

Characteristic

Specifications

Download

Describe

Characteristic
Single Fiber10G asymmetrical EPON ONU Transceiver
1310nm burst-mode 1.25 Gb/s transmitter with DFB laser
1577nm continuous-mode 10.3125Gb/s APD/TIAreceiver
Digital diagnostic monitoring (DDM)with internal calibration
SFP+ package with SC/UPC receptacle connector
+3.3V separated power supply,Low power dissipation
LVPECL interface logic level for data input
CML interface logic level for data output
LVTTL for burst signal input
LVTTL for receiver loss of signal detect indication
Compliant with IEEE 802.3av
SFF-8472 compliant
Telcordia GR-468-COREand MIL-STD-883compliant
RoHS-6/6 compliant
Operating temperature range: -40℃~ +85℃
FCC Part 15 Class B /EN55022 Class B (CISPR 22B)/VCCI Class B compliant.

Specifications

                                    Attribute
                                    Explain

                                    Package Type
                                    SFP+

                                    Operating Speed
                                    1.25/10Gb/s

                                    Transmission Wavelength
                                    1310nm

                                    Transmission Distance
                                    20km

                                    Transmitter Type
                                    DFB

                                    Receiver Type
                                    APD

                                    Operating Temperature
                                    -40~85℃

                                    Optical Interface Type
                                    SC

                                    Operating Voltage
                                    3.3V

                                    Digital Diagnostic Function
                                    Yes
